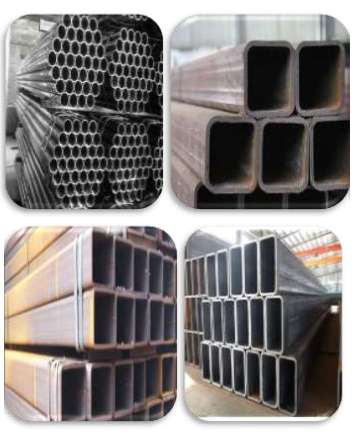

STRUCTURAL PIPES
SCHOOLS, SHOPPING MALLS, GENERAL USAGE PIPE ROUND, SQUARE, & RECTANGULARE HOLLOW SECTION IS : 1161
| SPECIFICATION | Images | |
|---|---|---|
| ROUND SIZE SQUARE SIZE RECTANGULAR SIZE |
OD 21.3 mm To mm 165.1 mm 19X19 mm To 180X180 mm 40X20 mm To 200X100 mm |
 |
| ROUND THICKNESS SQUARE THICKNESS RECTANGULAR THICKNESS |
2.00 mm To 5.4 mm 2.00 mm To 12.00 mm 2.00 mm To 12.00 mm |
|
| SPECIFICATION GRADE | ROUND IS : 1161, SQUARE IS : 4923 YST 210,240, REC.PIPE IS : 4923 YST 210,240, YST-210 ( 330 MPA ) YST -240 ( 410 MPA ) |
|
| MAKE | JINDAL, ISMT, MSL | |
| MATERIL LONG | 5.5 TO 6 METER | |
| USAGE APPLICATION | Schools, College, Bus Stand, Hotels, Hostel, & Top Roof etc.., |
|
M.S ERW PIPE IS : 1239/3589
For use in water, Gas, Air & Steam Application

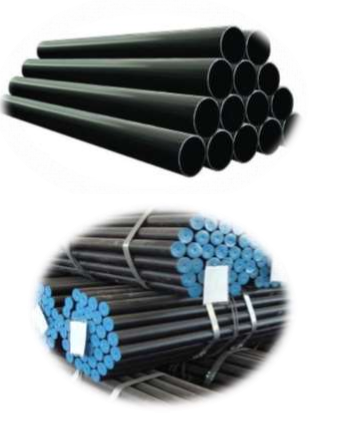

BLACK ROUND PIPE
ERW STEEL TUBES CONFORMING TO IS: 1239(Pt-I)
EQUIVALENT TO BS: 1387 & STRUCTURAL TUBES CONFORMING TO IS: 1161
| SPECIFICATION | Images | ||||
|---|---|---|---|---|---|
| SIZE | NB 15 mm TO 150 mm |  |
|||
| WALL THICKNESS | 2.0 mm TO 5.4 mm | ||||
| SPECIFICATION GRADE | IS : 1239, 1161, 1387 | ||||
| MAKE | TATA, JINDAL | ||||
| MATERIL LONG | 5.5 TO 6 METER | ||||
| USAGE APPLICATION | Boiler, Process Industry, Pipe Line, Burwell, Fire Fighting, industrial Projects, Plumbing, HVAC, Cold Storage, Irrigation.., |
||||

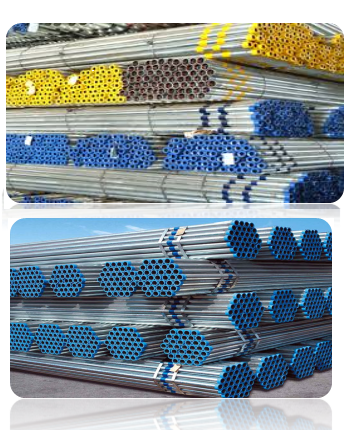

G.I PIPE IS : 1239
For use in water, Gas, Air & Steam Application
BLACK ROUND PIPE
G.I STEEL TUBES CONFORMING TO IS: 1239(Pt-I)
EQUIVALENT TO BS: 1387 & STRUCTURAL TUBES CONFORMING TO IS: 1161
| SPECIFICATION | Images | ||||
|---|---|---|---|---|---|
| SIZE | NB 15 mm TO 150 mm |  |
|||
| WALL THICKNESS | 2.0 mm TO 5.4 mm | ||||
| SPECIFICATION GRADE | IS : 1239, 1161, 1387 | ||||
| MAKE | TATA, JINDAL | ||||
| MATERIL LONG | 5.5 TO 6 METER | ||||
| USAGE APPLICATION | Boiler, Process Industry, Pipe Line, Burwell, Fire Fighting, industrial Projects, Plumbing, HVAC, Cold Storage, Irrigation.., |
||||
SEAMLESS PIPE ASTM
CARBON STEEL SEAMLESS PIPE SPIC ASTM : A 53
SEAMLESS BOILER TUBE CONFORMING TO ASTM : SA 106
| SPECIFICATION | Images | ||||
|---|---|---|---|---|---|
| CARBON STEEL SEAMLESS PIPE SEAMLESS BOILER PIPE | OD 10 mm TO 610 mmOD 19.05 mm TO 508.00 mm |  |
|||
| CARBON STEEL SEAMLESS PIPE SEAMLESS BOILER PIPE | W .T0.5 mm TO 50 mm (SCH 20 TO XXS) W.T 2.05 mm TO 12.7 mm | ||||
| SPECIFICATION GRADE | ASTM A-53, IS : 1161, BS : 3059 ASTM –SA-106 GR.B, IS : 1978/td> | ||||
| MAKE | JINDAL, ISMT, MSL | ||||
| MATERIL LONG | 5.5 TO 6 METER | ||||
| USAGE APPLICATION | Boiler, Oil & Gas, Process Industry,Heat Exchanger, Line Pipe, Casting Pipe, Cold Storage, Irrigation..., | ||||

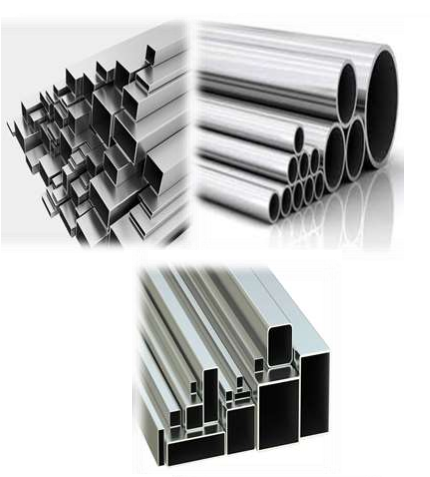

ARCHITECTURAL & INFRASTRUCTURAL PIPES
AIRPORT, GENERAL ENGINEERING , INDUSTRIAL USAGE PIPE ROUND, SQUARE, & RECTANGULARE HOLLOW SECTION IS : 4923
WE CAN ALSO SUPPLY ASTM A 500 SPECIFICATION
| SPECIFICATION | Images | |
|---|---|---|
| ROUND SIZE SQUARE SIZE RECTANGULAR SIZE |
OD 15 mm To 150 mm 25X25 mm To 250X250 mm 50X25 mm To 300x200 mm |
 |
| ROUND THICKNESS SQUARE THICKNESS RECTANGULAR THICKNESS |
2.00 mm To 5.4 mm 2.00 mm To 12.00 mm 2.00 mm To 12.00 mm |
|
| SPECIFICATION GRADE | ROUND IS : 1239, 1161, 3589 & 3601 SQUARE IS : 4923 YST 210,240,310 REC.PIPE IS : 4923 YST 210,240,310 YST-210 ( 330 MPA ) YST -240 ( 410 MPA ) YST-310 ( 450 MPA ) |
|
| MAKE | JINDAL, ISMT, MSL | |
| MATERIL LONG | 5.5 TO 6 METER | |
| USAGE APPLICATION | Industrial Sheds, Airport, Bridges, Bus Body, Railway Platform, Guard Rails & Staircases etc., |
|
